WHO WE ARE
Tirupati forge limited (TFL) is one of India's leading manufacturer of artillery munitions with an installed capacity of 1,50,000 pcs per year. Our advanced production facility spans over 25,000 square meters, integrating cutting-edge infrastructure for manufacturing, assembly, testing, and strict quality control. With a dedicated ammunition plant staffed by highly skilled professionals it makes TFL best in class.
155mm Artillery Ammunition Description

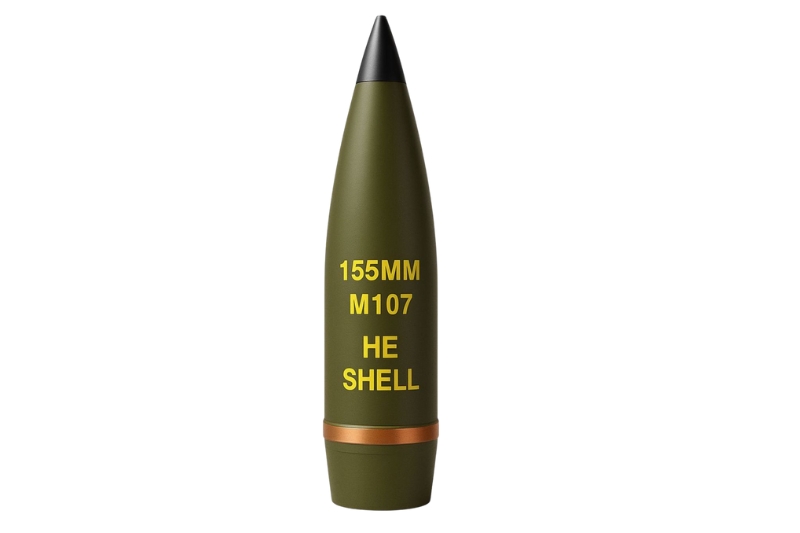

155 mm Ammunition: HE M-107
M-107 ammunition is designed for destroying stationary targets, places with high concentration of infantry, field covers, light-armored targets, weapon systems, military, and transport equipment etc. The effect of the projectile on target is realized by kinetic energy of fragments of metal parts of the shell and by the blast wave of explosive charge.
Specifications
| Particulars | HE M 107 |
| Mass of the Projectile | 40.823 to 42.911 Kg |
| Length of the Projectile | 604 mm to 605.36 mm |
| Max Dia over Driving Band | 157.99 mm – 0.2 mm |
| Mass of Filling | 6.6 Kg |
| Maximum Range (for 155 mm/ 39 Cal gun) | ≥ 18 Km |
155 mm Ammunition: HE ERFB (BT)

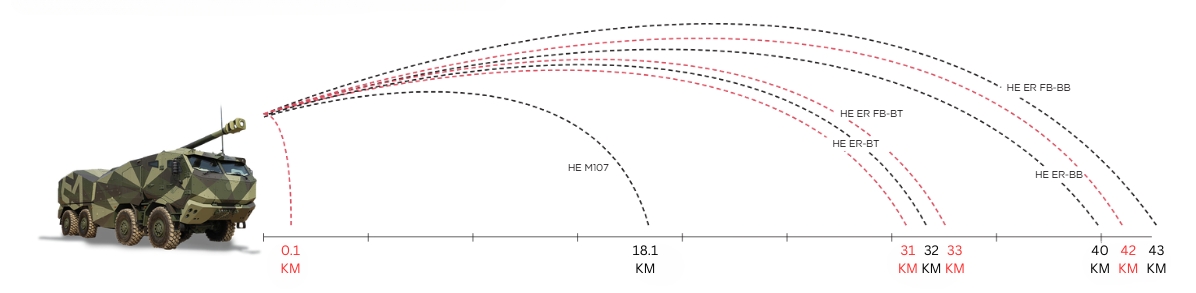

High Explosive Extended Range projectile with (Boat Tail) is filled with TNT. The projectile has boat tail screwed on the projectile (shell body) bottom. This ensures extended range up to 30,000 meters, when fired from 45 caliber gun and up to 31,000 meters when fired from 52 caliber gun.
Specifications
| Particulars | HE ERFB (BT) |
| Mass of the Projectile | 42.84 to 45.34 Kg |
| Length of the Projectile | 838 mm to 844.31 |
| Max Dia over Driving Band | 157.86 mm – 0.2 mm |
| Mass of Filling | 8.71 Kg |
| Maximum Range (for 155 mm/ 39 Cal gun) | ≥ 24 Km |
.png)
.png)
155 mm Ammunition: HE ERFB (BB)
High Explosive Extended Range projectile with (Base Bleed) is filled with TNT. The projectile uses the discharge gas generator (Base Bleed), which ensures extended range up to 38,000 meters, when fired from 45 caliber gun and up to 41,000 meters when fired from 52 caliber gun.
Specifications
| Particulars | HE ERFB (BB) |
| Mass of the Projectile | 45.27 to 47.77 Kg |
| Length of the Projectile | 857.6 mm to 867.76 mm |
| Max Dia over Driving Band | 157.86 mm – 0.2 mm |
| Mass of Filling | 8.71 Kg |
| Maximum Range (for 155 mm/ 39 Cal gun) | ≥ 30.5 Km |
